Gaggenau VL200120200 Series Vario 200 Series Downdraft Ventilation Black Control Panel Width 5 7/8" (15 Cm): Black
Gaggenau VL200120
Description
Output
- Noise level depends on the built-in situation.

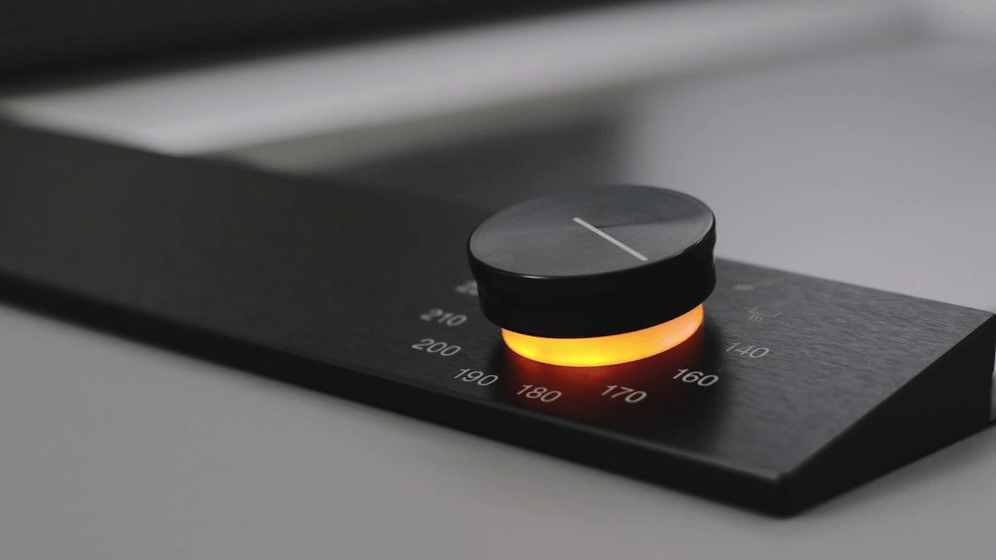

- Control knobs with illuminated ring.
- 3 electronically controlled power levels and 1 intensive mode.
- Automatic function with sensor-controlled run-on function.
- Large-scale metal grease filter with high grease absorption.
- Grease filter, dishwasher-safe.
- Grease filter and activated charcoal filter saturation indicator.
- Airflow-optimised interior for efficient air circulation.
- Interval ventilation, 6 min.
- Enamelled ventilation grill, dishwasher-safe.

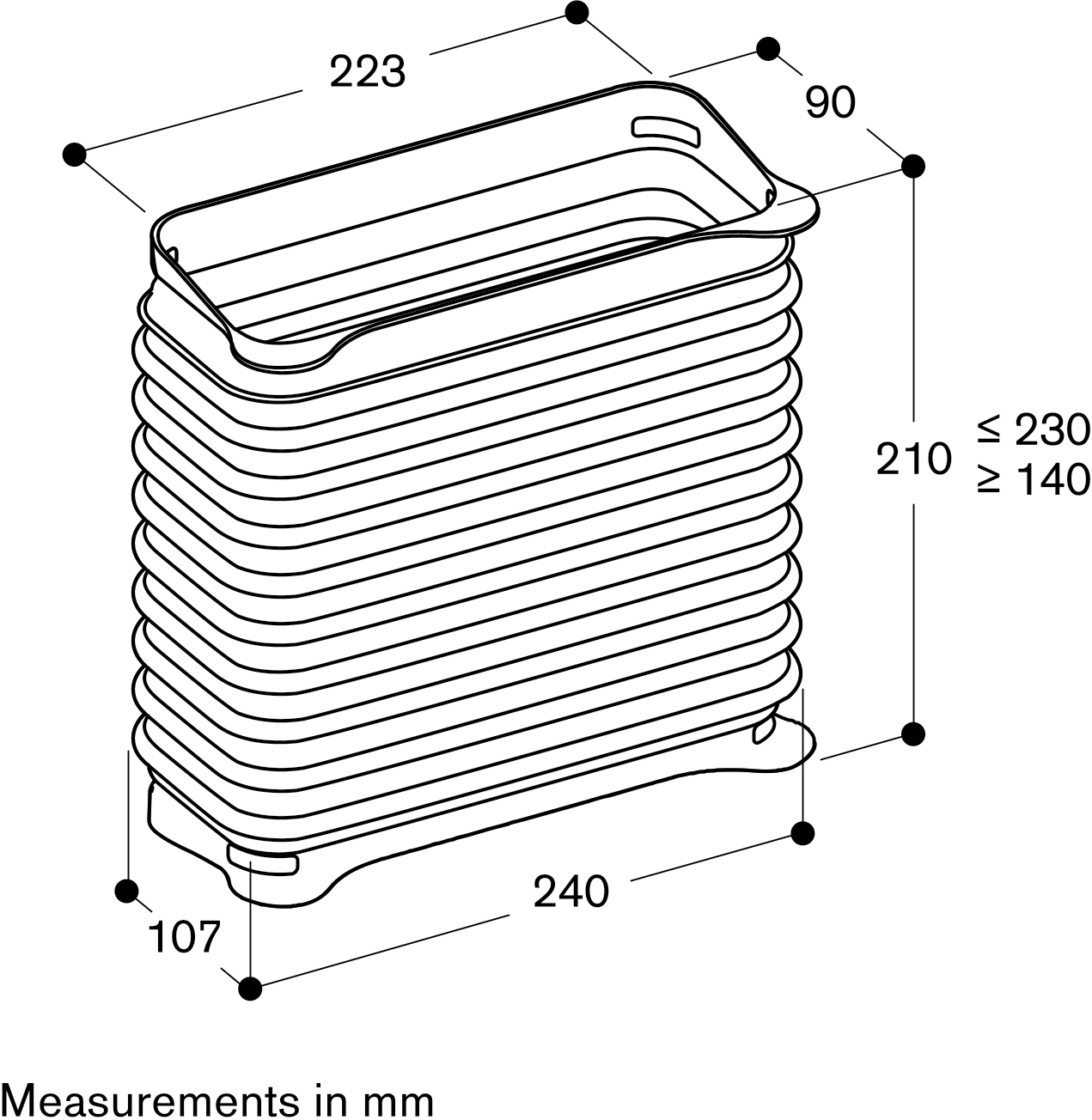

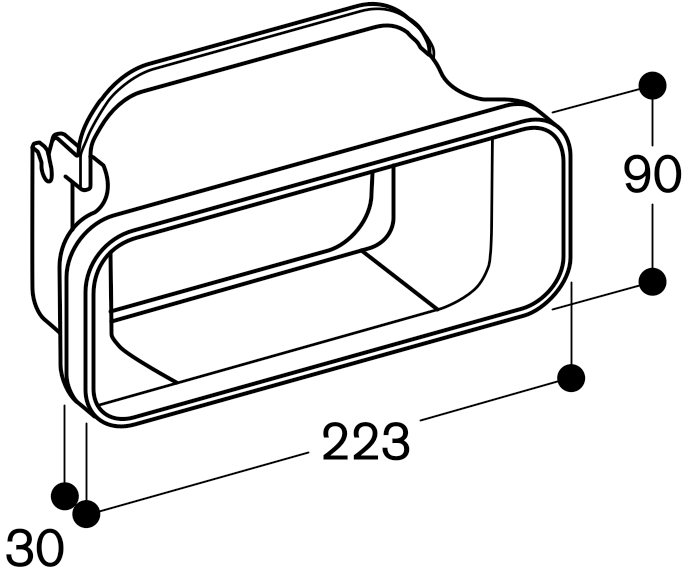

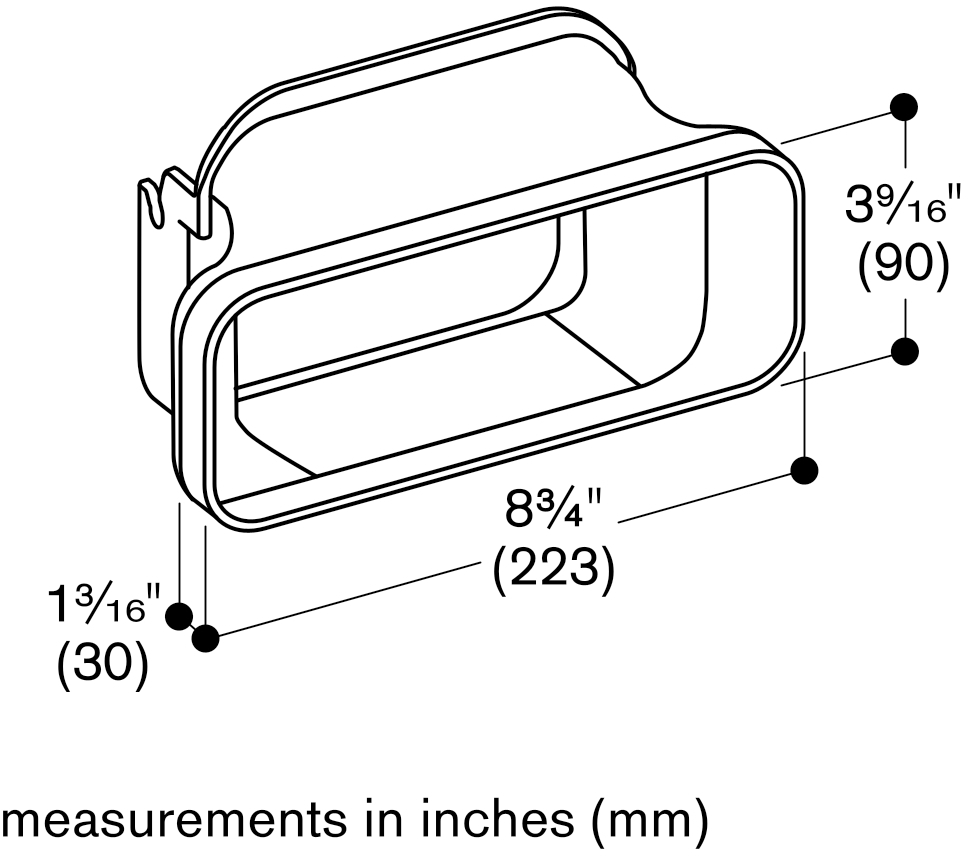

- Air exhaust bend included in delivery.
- Overflow 250 ml capacity.
- Consumption data is referred to a configuration with the recirculation blower AR 410 710.
- Sound level min. 56 dB / max. 71 dB normal mode.
- Air recirculation mode in combination with recirculation blower with AR 410 710 or AR 413 722.

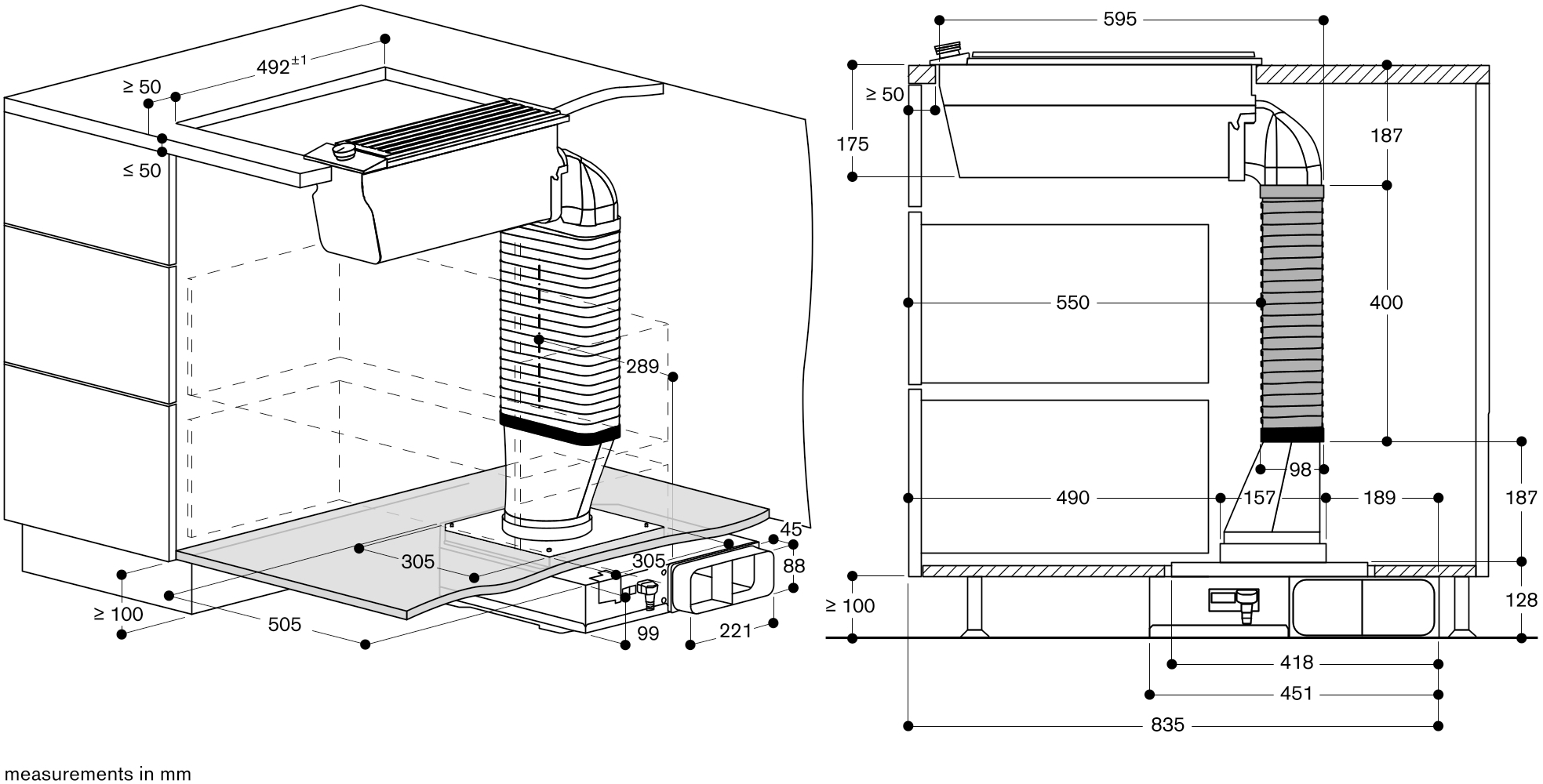

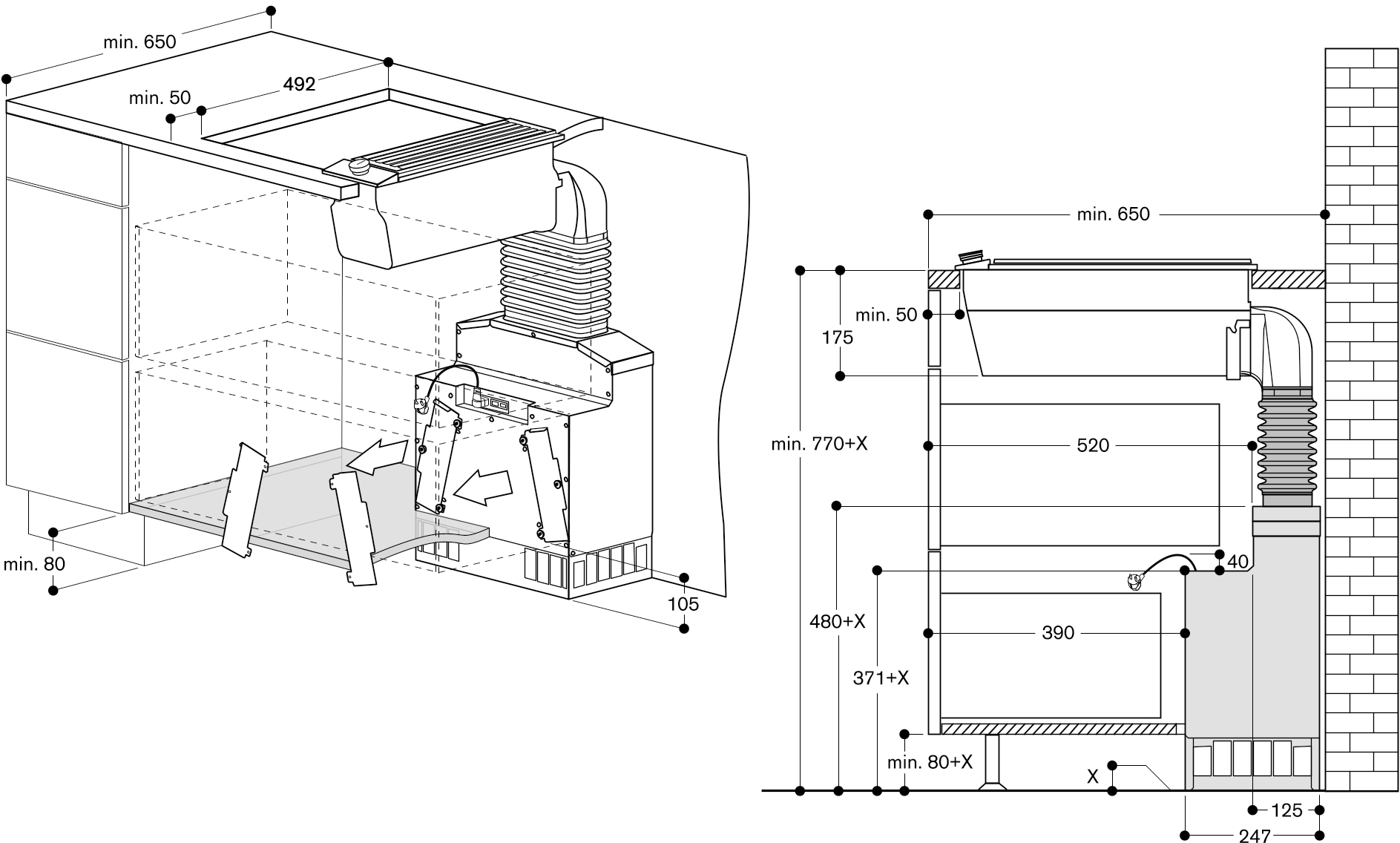

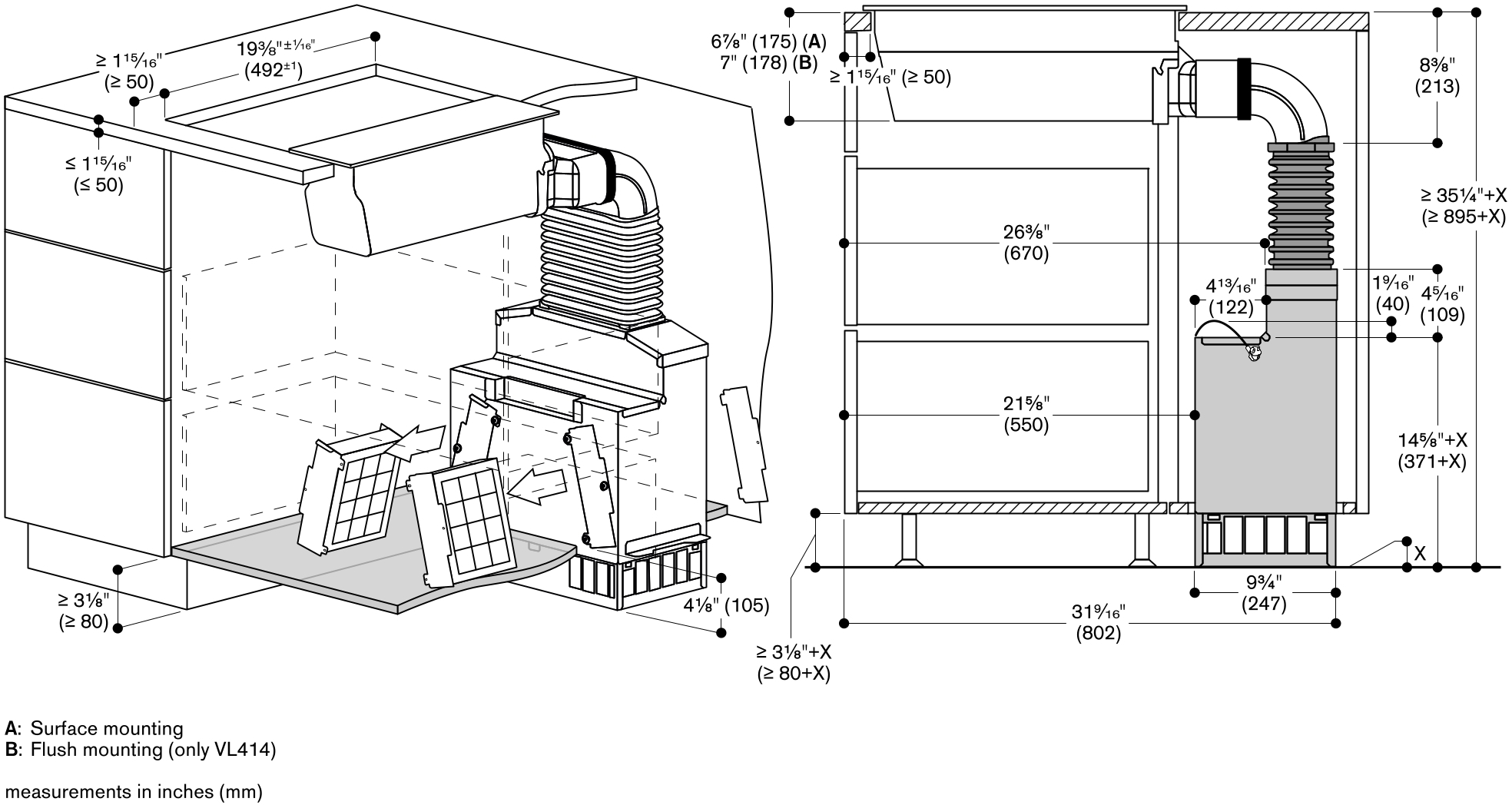

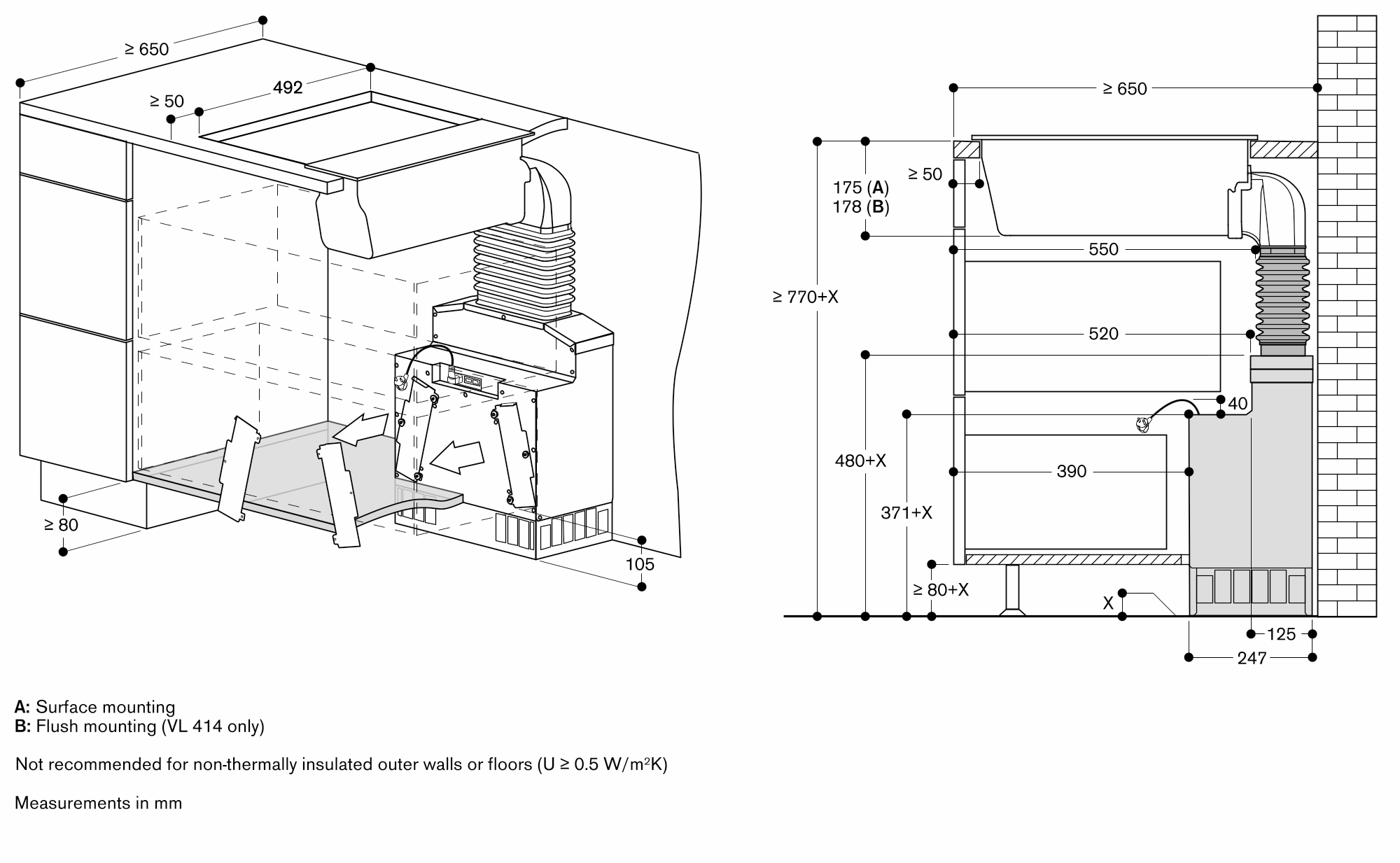

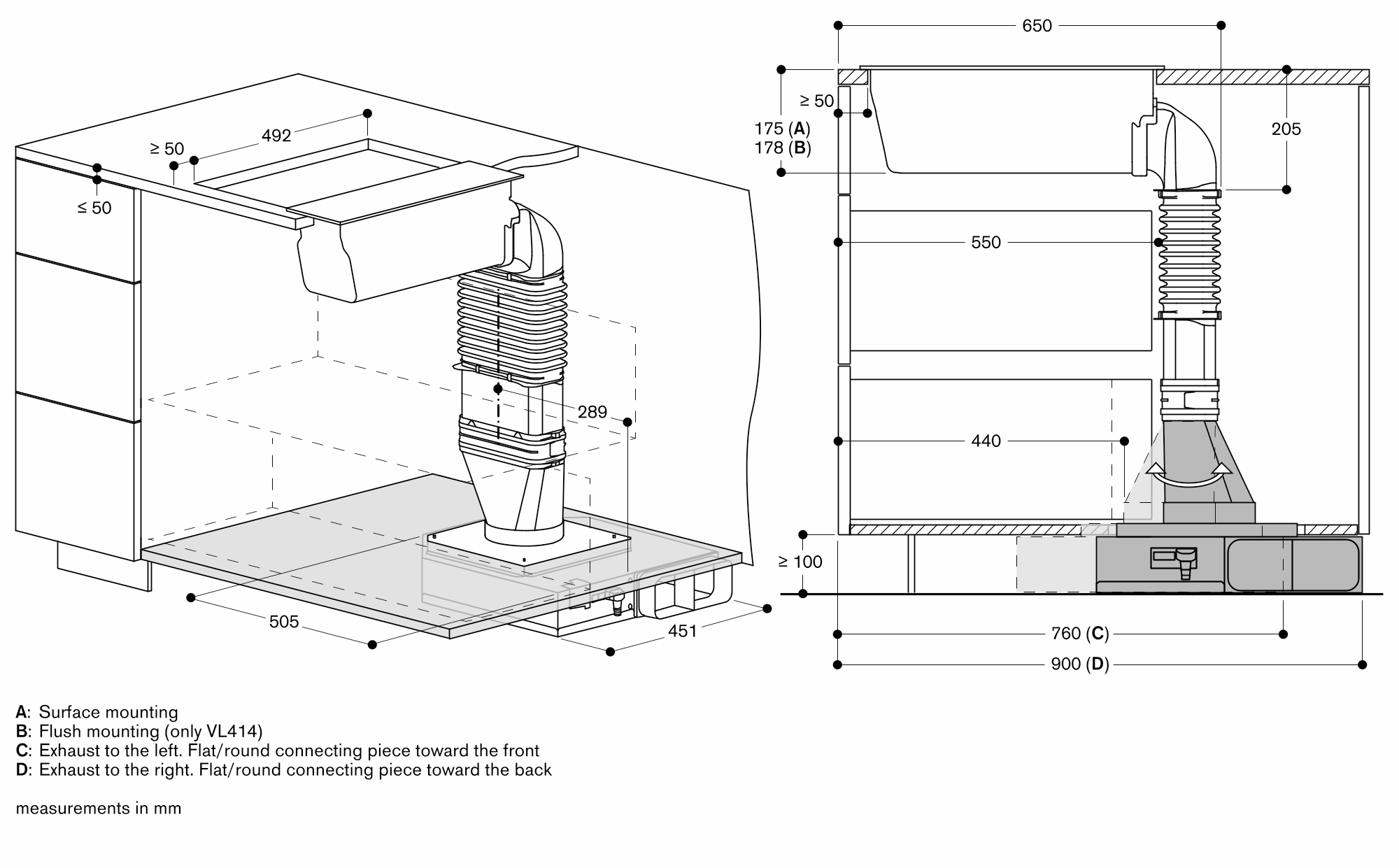

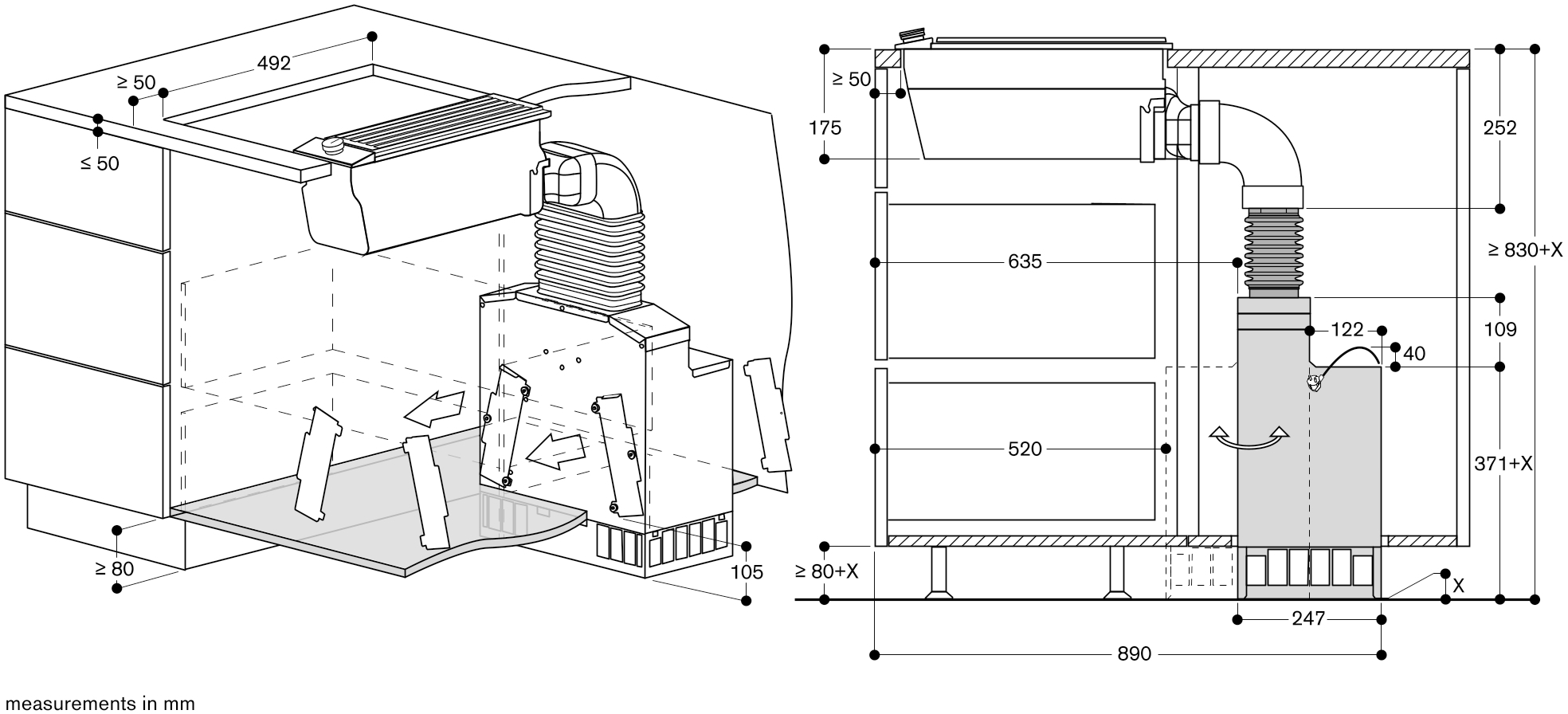

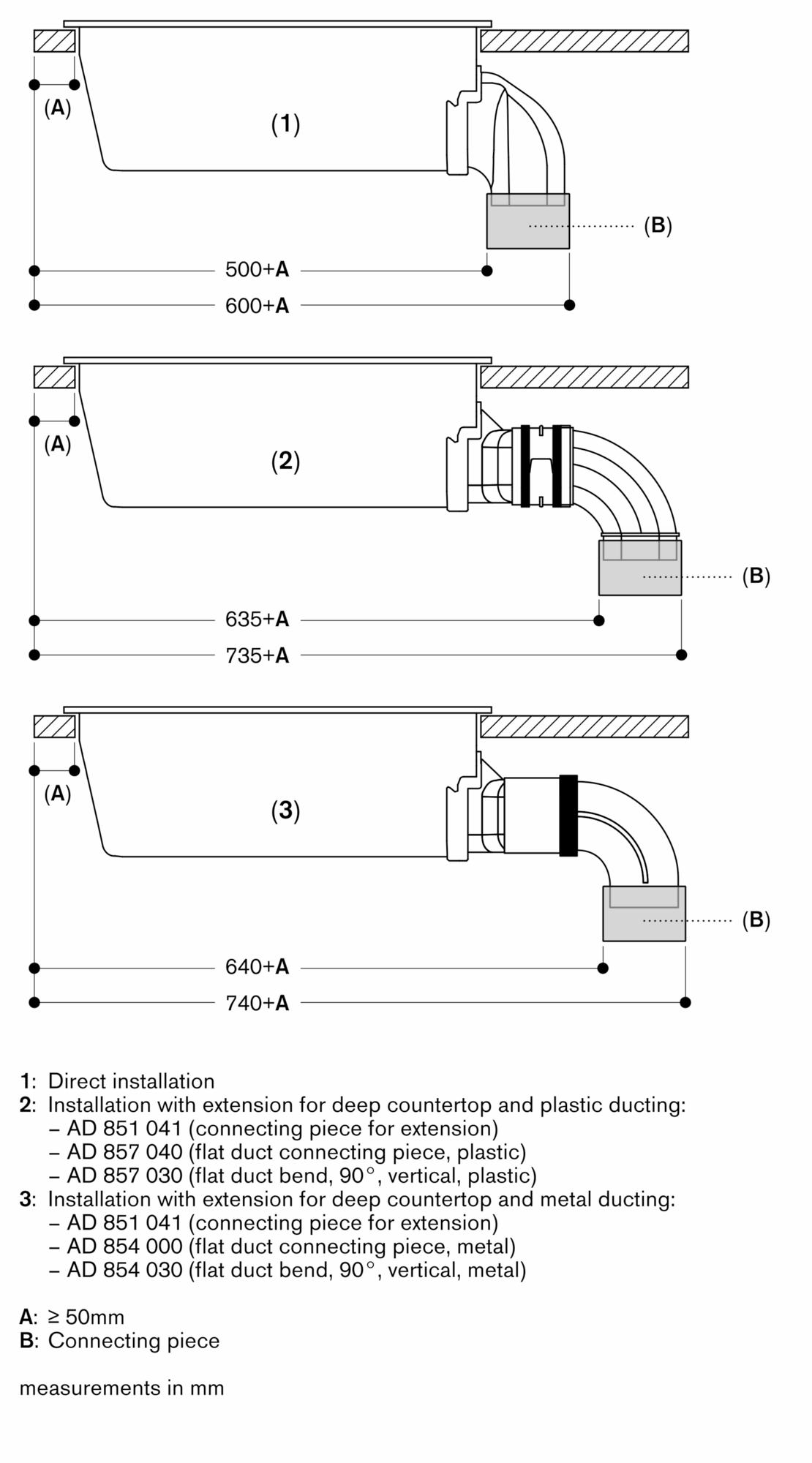

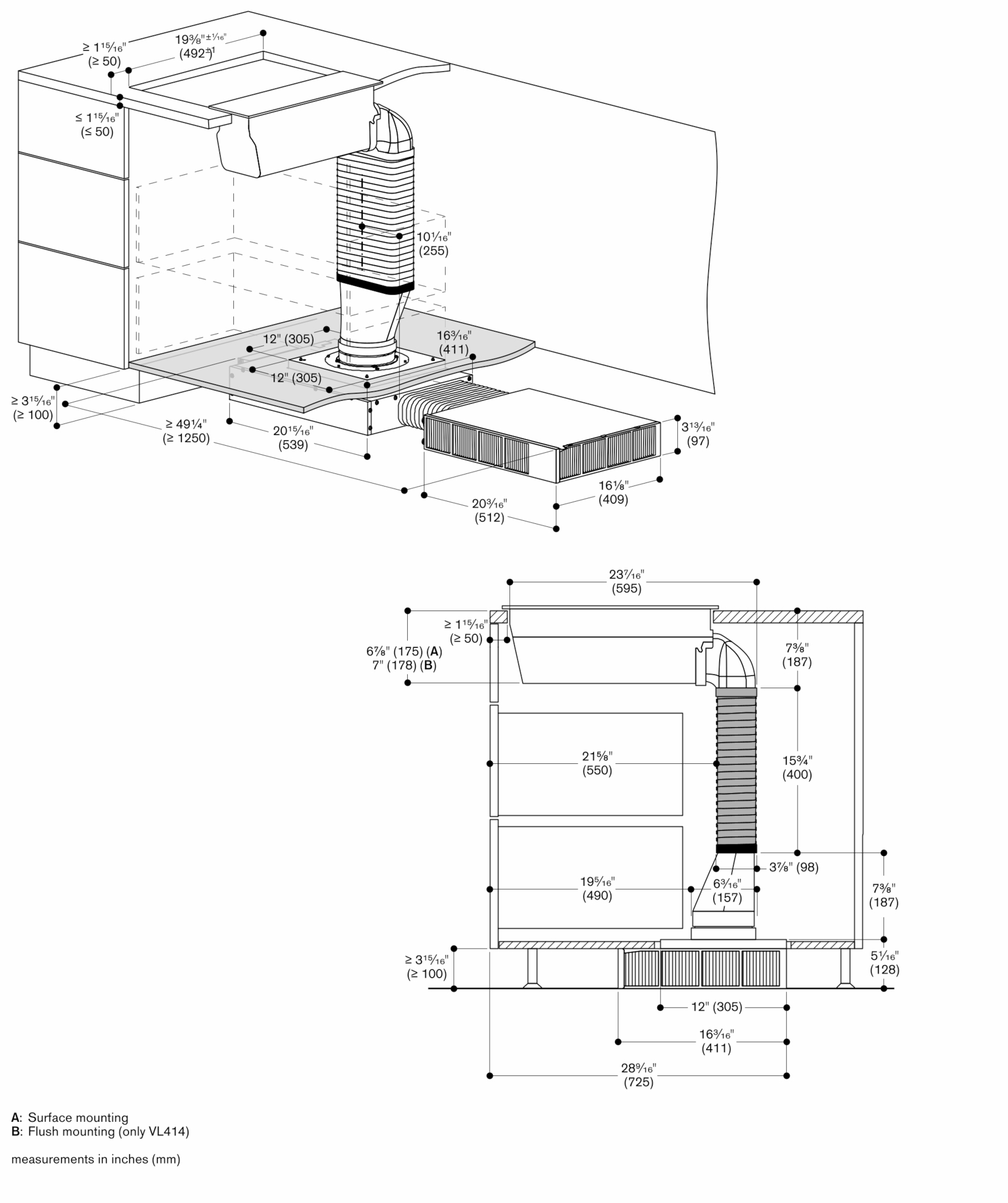

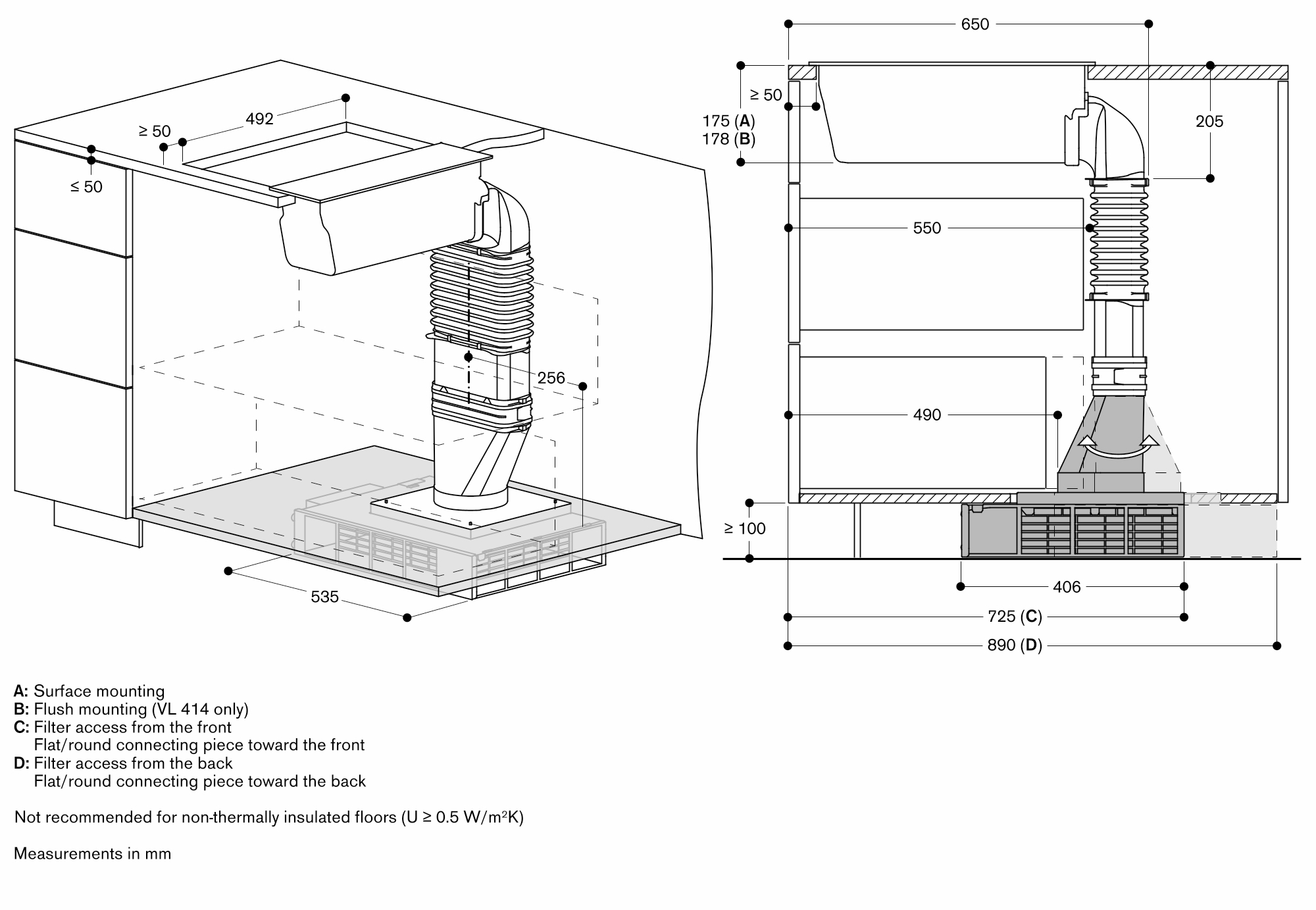

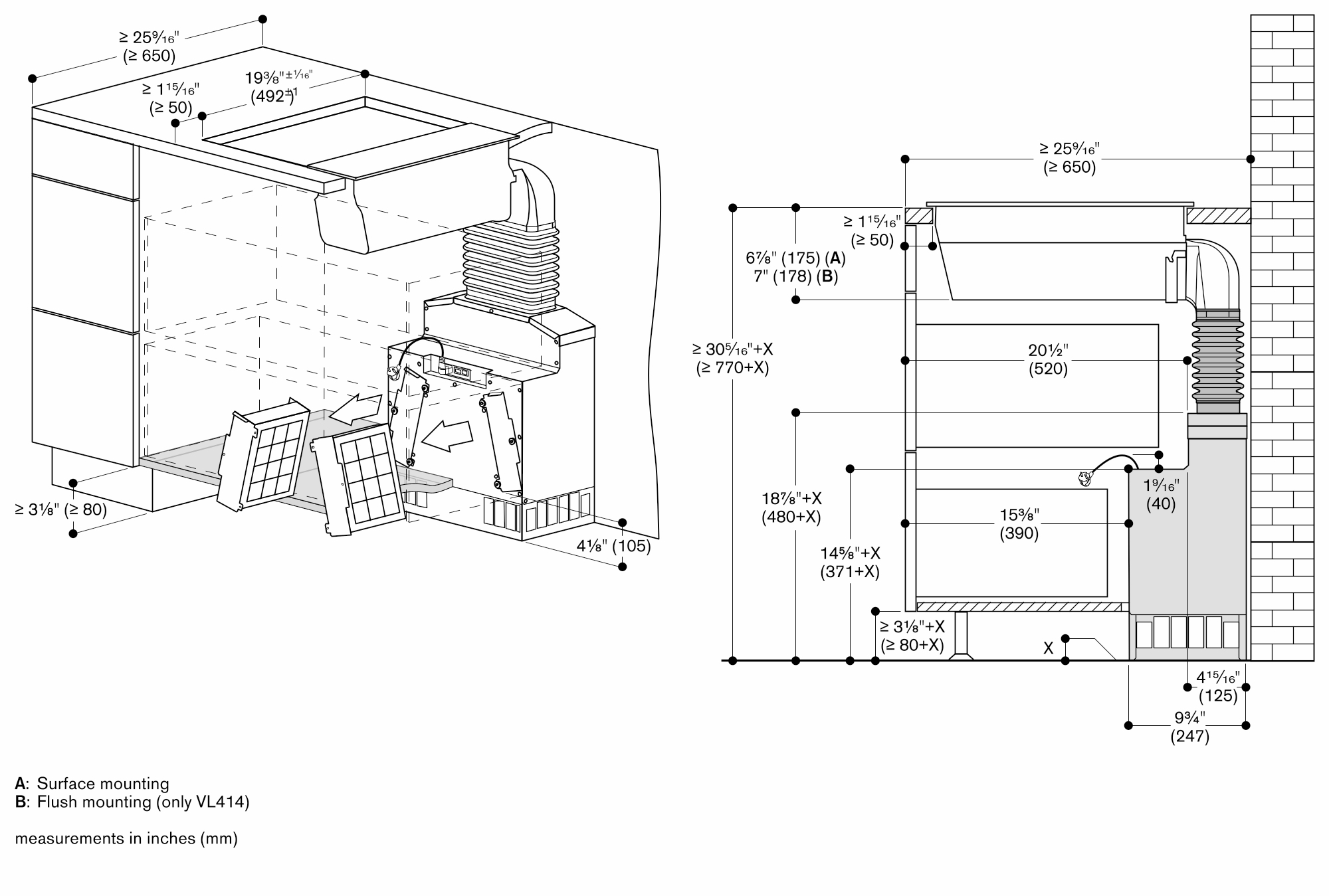

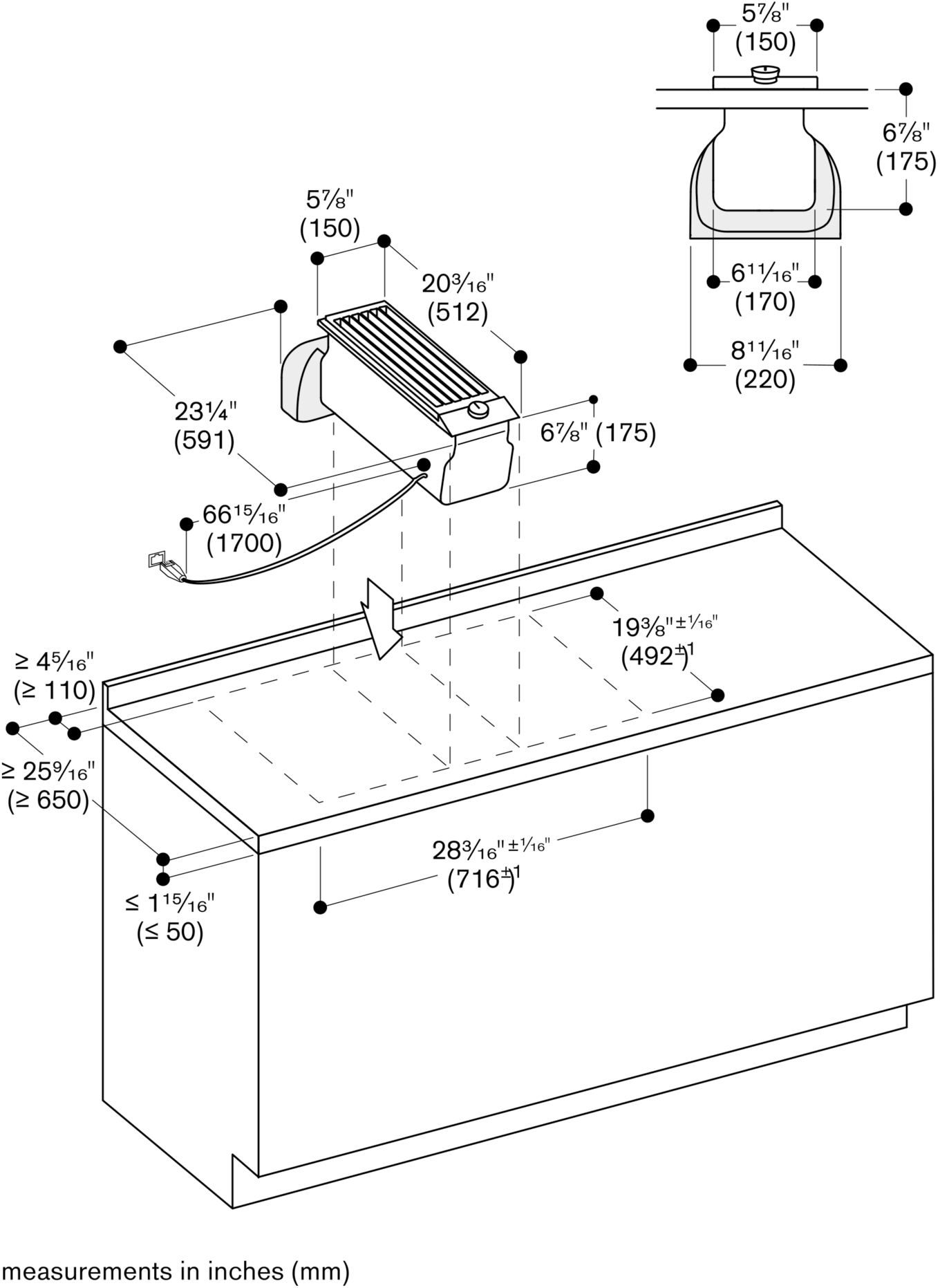

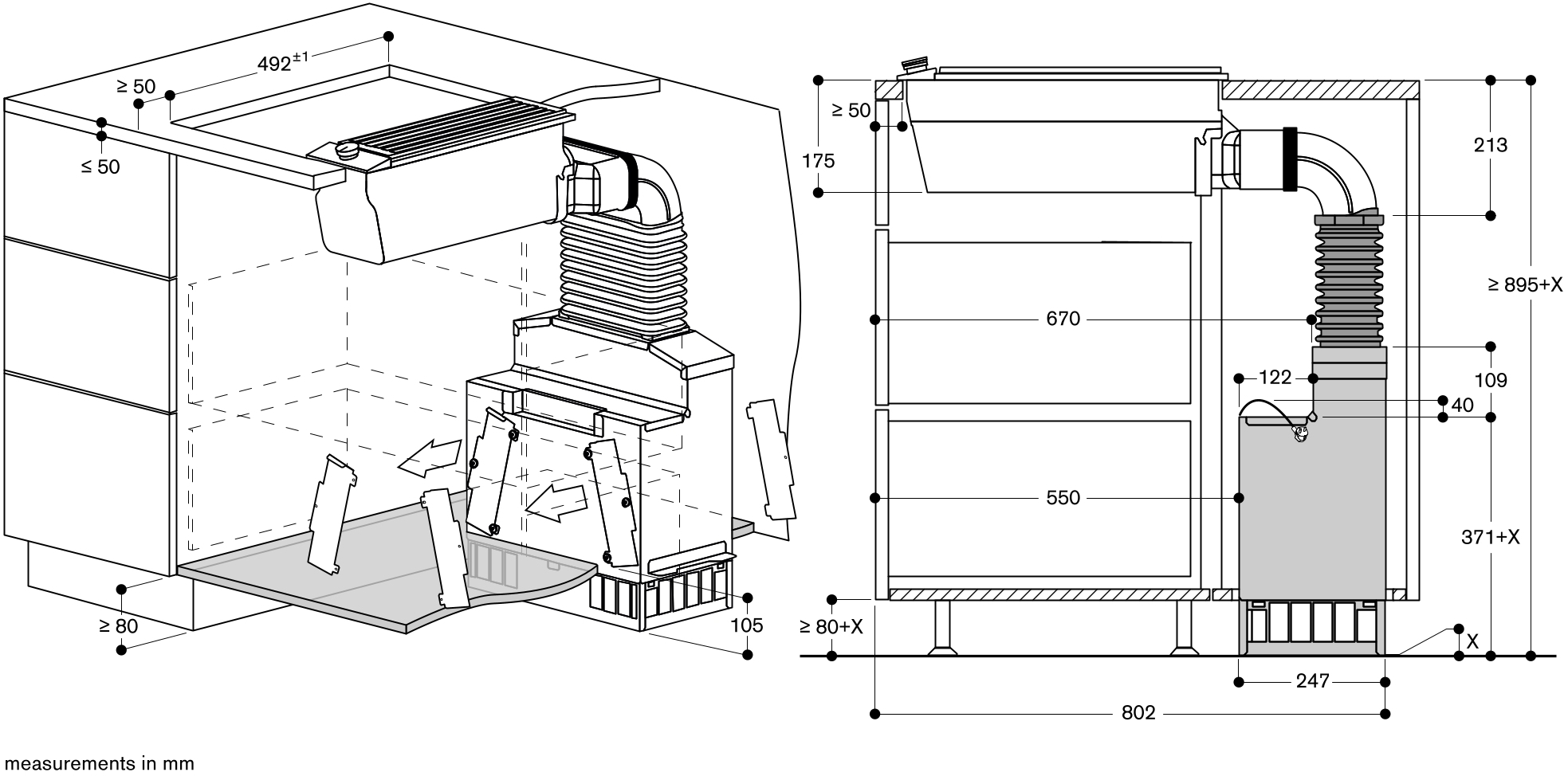

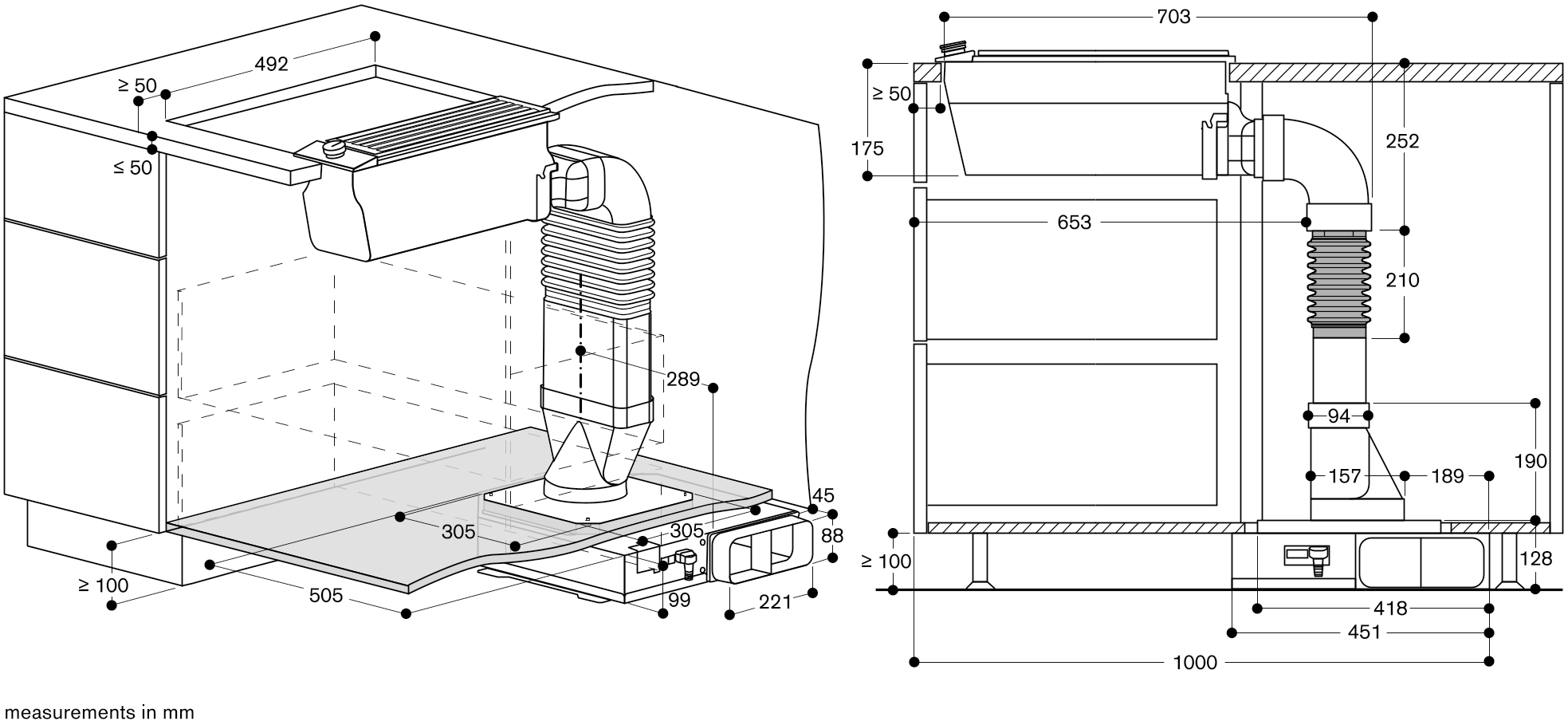

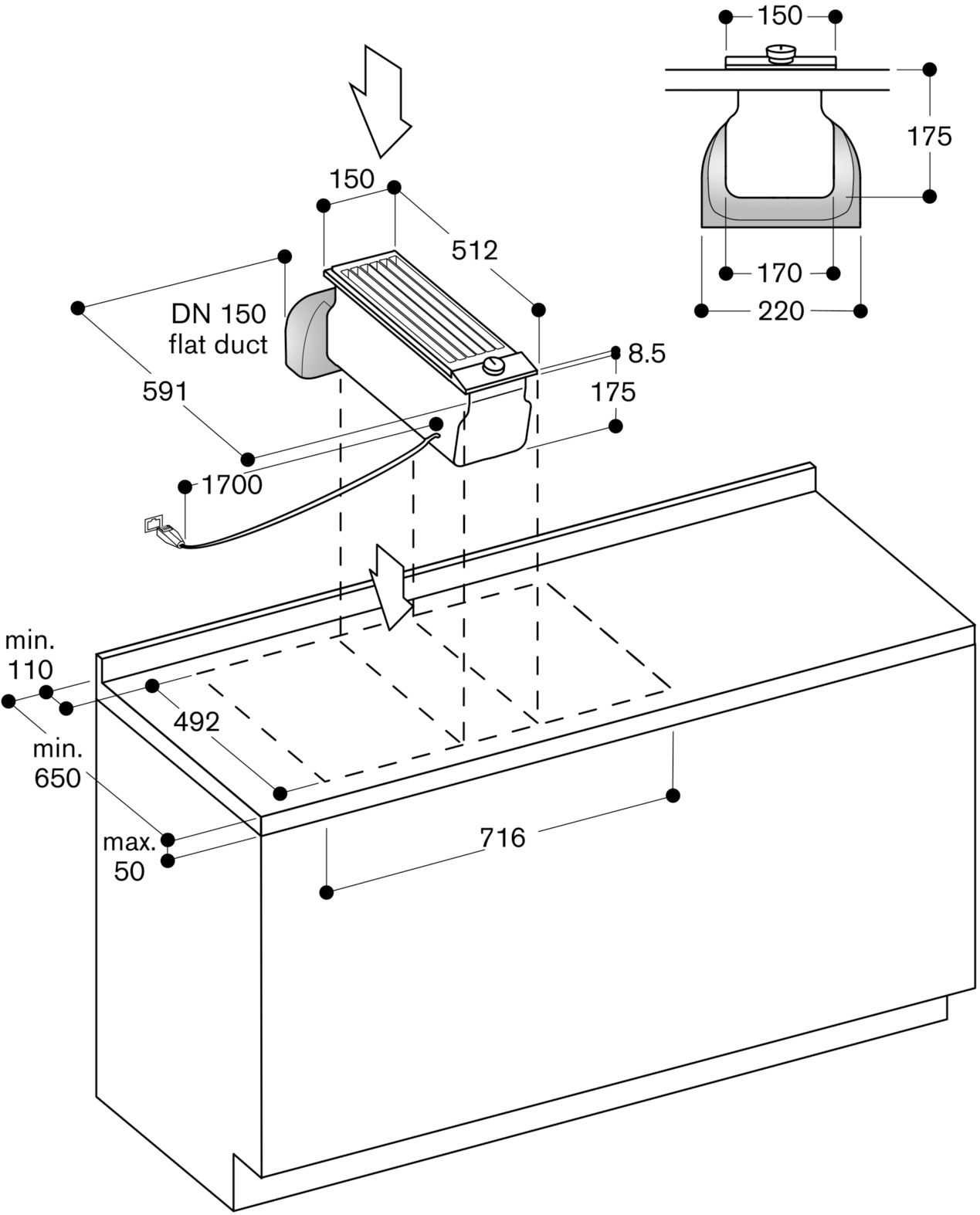

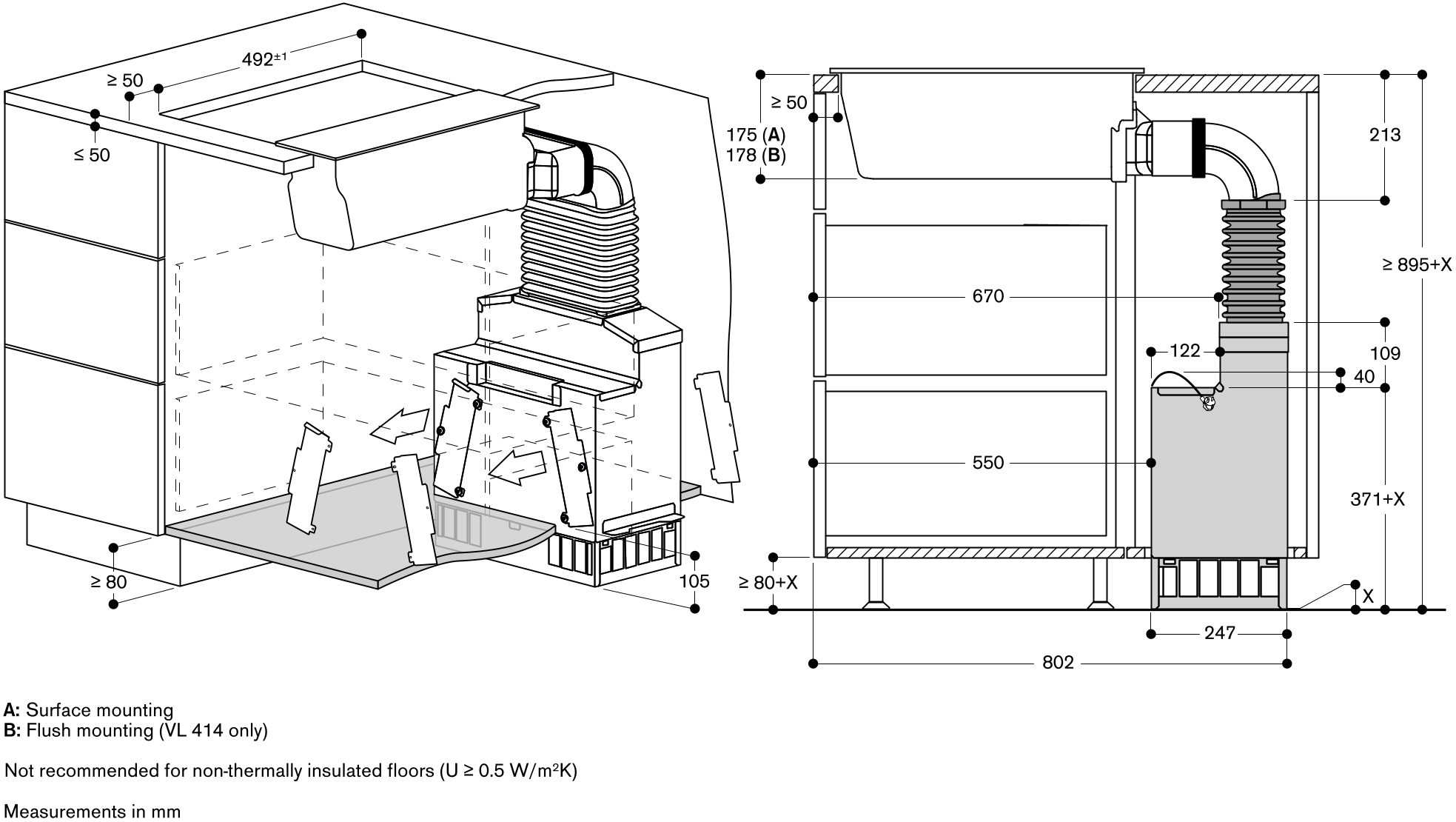

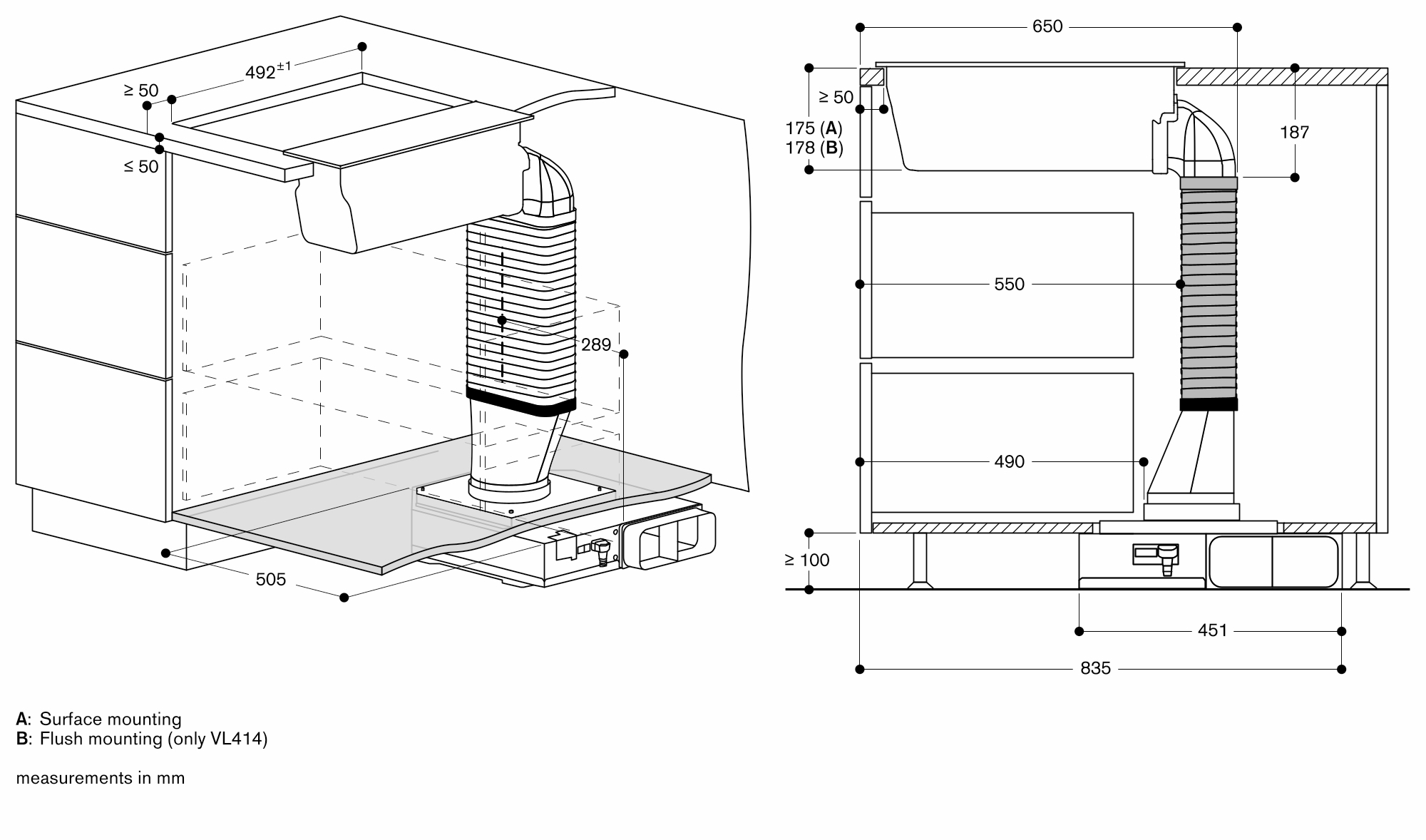

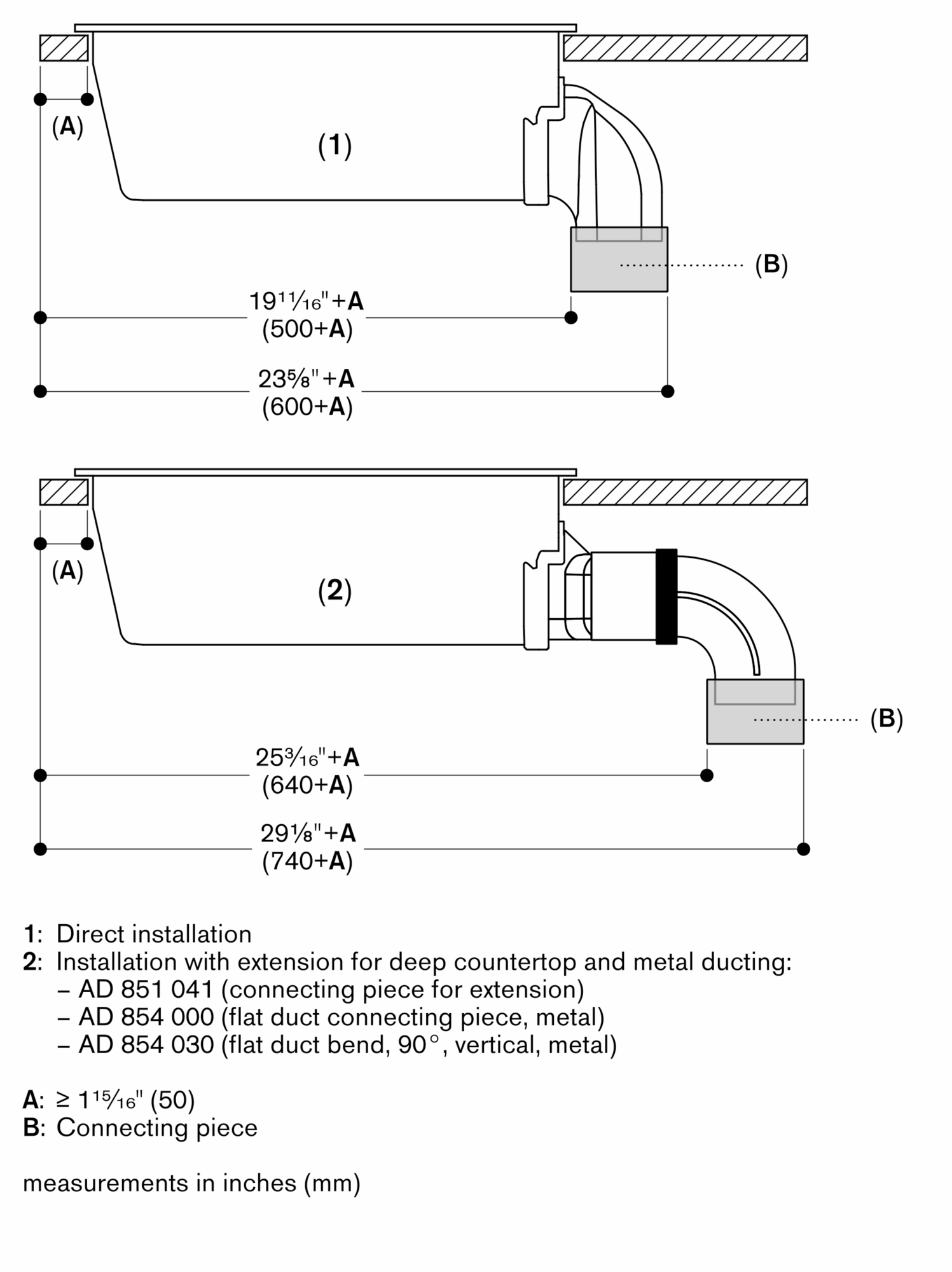

- Please refer to the models and dimentions for recommended configurations of downdraft ventilations and blower units and the needed ducting elements.
- For each VL one remote fan unit is recommended.
- Maximum cooktop width between two VL downdrafts is 24".
- If installed next to gas appliances, the ventilation deflector LA 041 001 is recommended to ensure maximum performance of the cooktop.
- When having installed the ventilation deflector LS 041 001 the wok pan WP 400 001 can not be used.
- When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch.
- Please read additional planning notes on page 104.
- Connecting cable 66" (1.7 m) between VL and blower.
