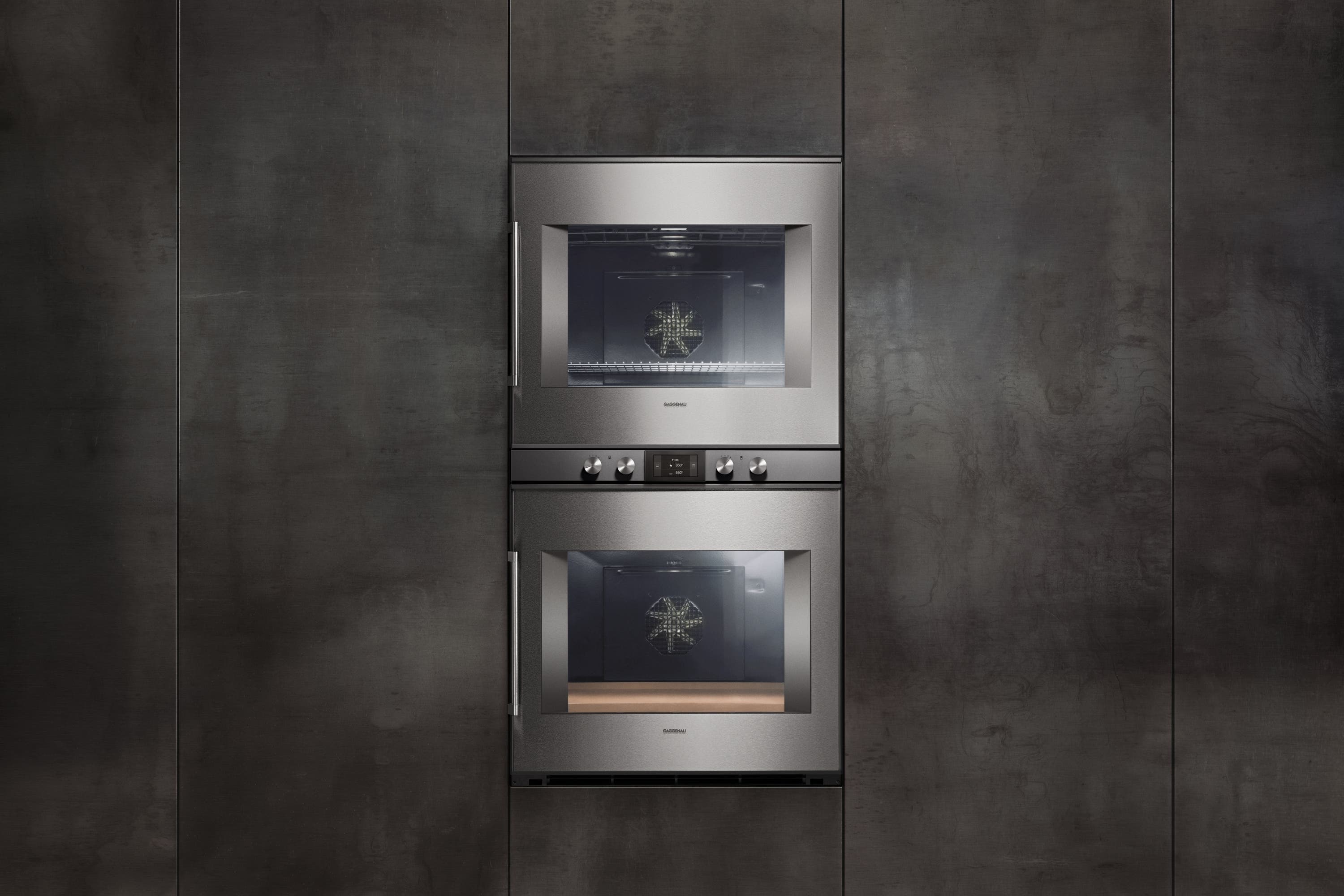

Gaggenau BX480612400 Series Double Oven Full Glass Door Width 30" (76 Cm) Controls Centered: Right Hinge
Gaggenau BX480612
Other Options
Finish:
BX480612
Call
Item Selected
BX481612
Call
Stainless Steel, Left Hinge
Description
Cooking modes
- Convection.
Economy convection..
Top + bottom heat.
Top + 1/3 bottom heat.
Top heat.
1/3 top + bottom heat.
Bottom heat.
Convection + bottom heat.
Convection + 1/3 bottom heat.
Convection broiling..
Broiling.
Compact grill.
Baking stone operation.
Roaster function.
Dough proofing.
Defrosting.
Keeping warm.
- Rotary knob and TFT touch display operation.
- Clear text display in 25 languages.
- Information key with use indicators.
- Side-opening door opens up to 180(degree) angle.
- Three-point core temperature prove with automatic shut-off and estimation of cooking time.
- Rotisserie spit (lower oven).
- Baking stone outlet.
- Actual temperature display.
- Fast heating setting.
- Timer functions: cooking time,
switch-off time, short-term timer,
stopwatch. - 60 W halogen light on the top.
- 10 W halogen light on the side.
- Enamelled side shelf supports with 5 tray levels, pyrolysis-safe.
- Thermally insulated door with quadruple glazing.
- Child lock.
- Safety shut-off.
- Cooled housing with temperature protection.
- Pyrolytic self-cleaning.
- Gaggenau Clean-Enamel.
- Heated air cleaning catalyst.
- Door hinge not reversible.

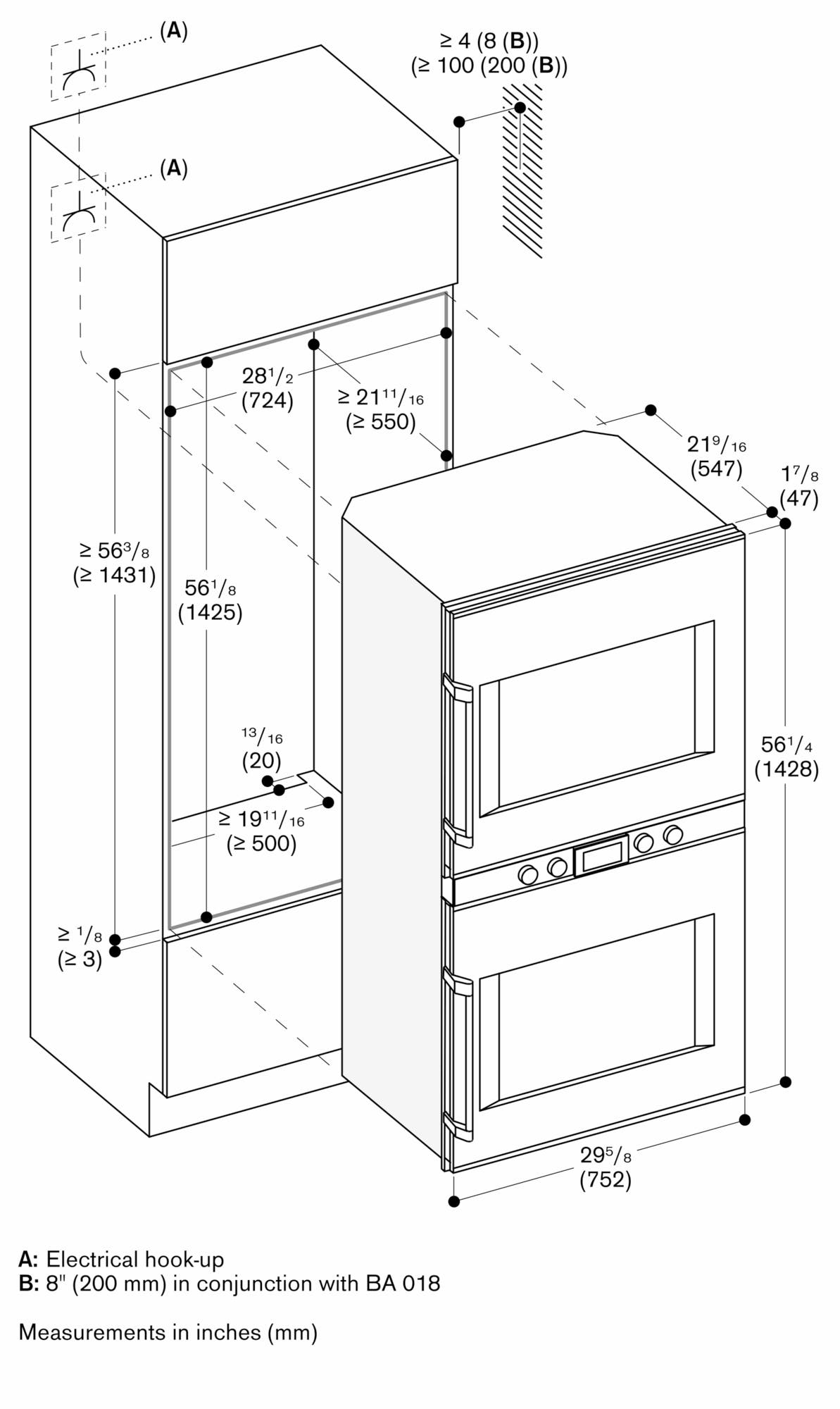

- The front of the appliance extends 1 7/8" from the cabinet front.
- Consider the overhang when planning to open drawers next to the appliance.
- When planning a corner solution, pay attention to the 90(degree) door opening angle.
- To achieve the 21 5/8" installation depth, the connection cable needs to follow the slanted edge on the lower right hand corner of the housing.
- Plan a power outlet outside of the
cut-out niche.
- Total rating 9.2 kW.
- Total Amps: 40 A.
- 208 / 220 - 240 V / 60 Hz.
- Connection cable 70 7/8" without plug.
