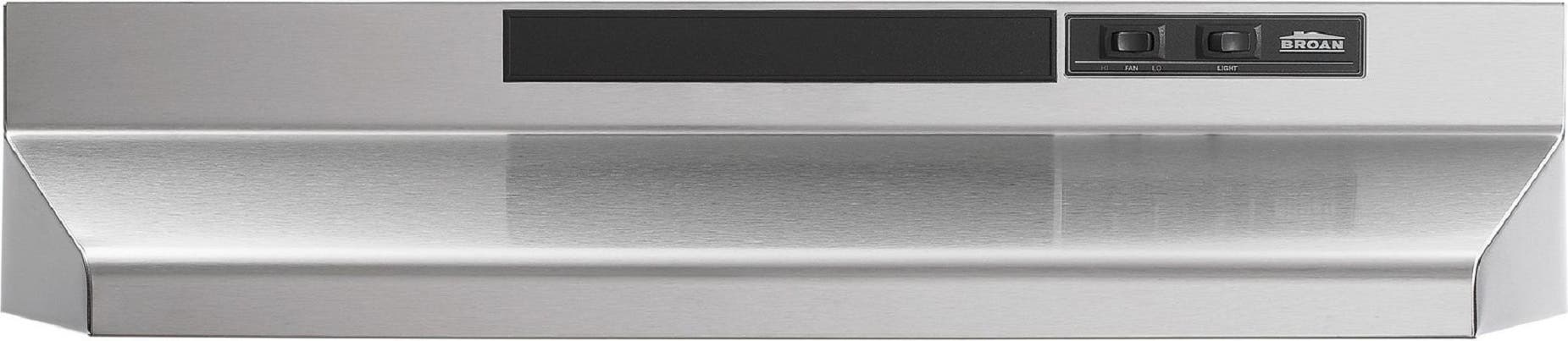

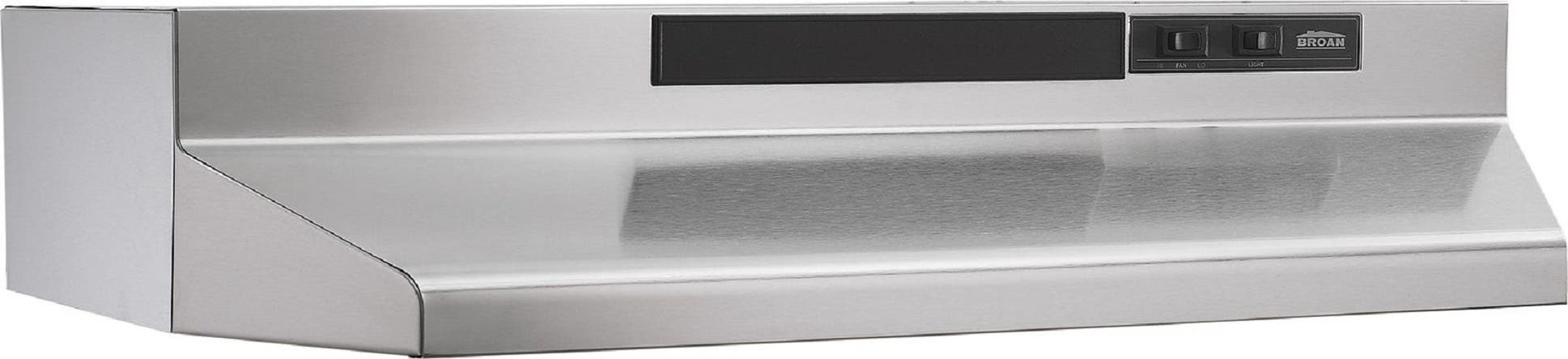

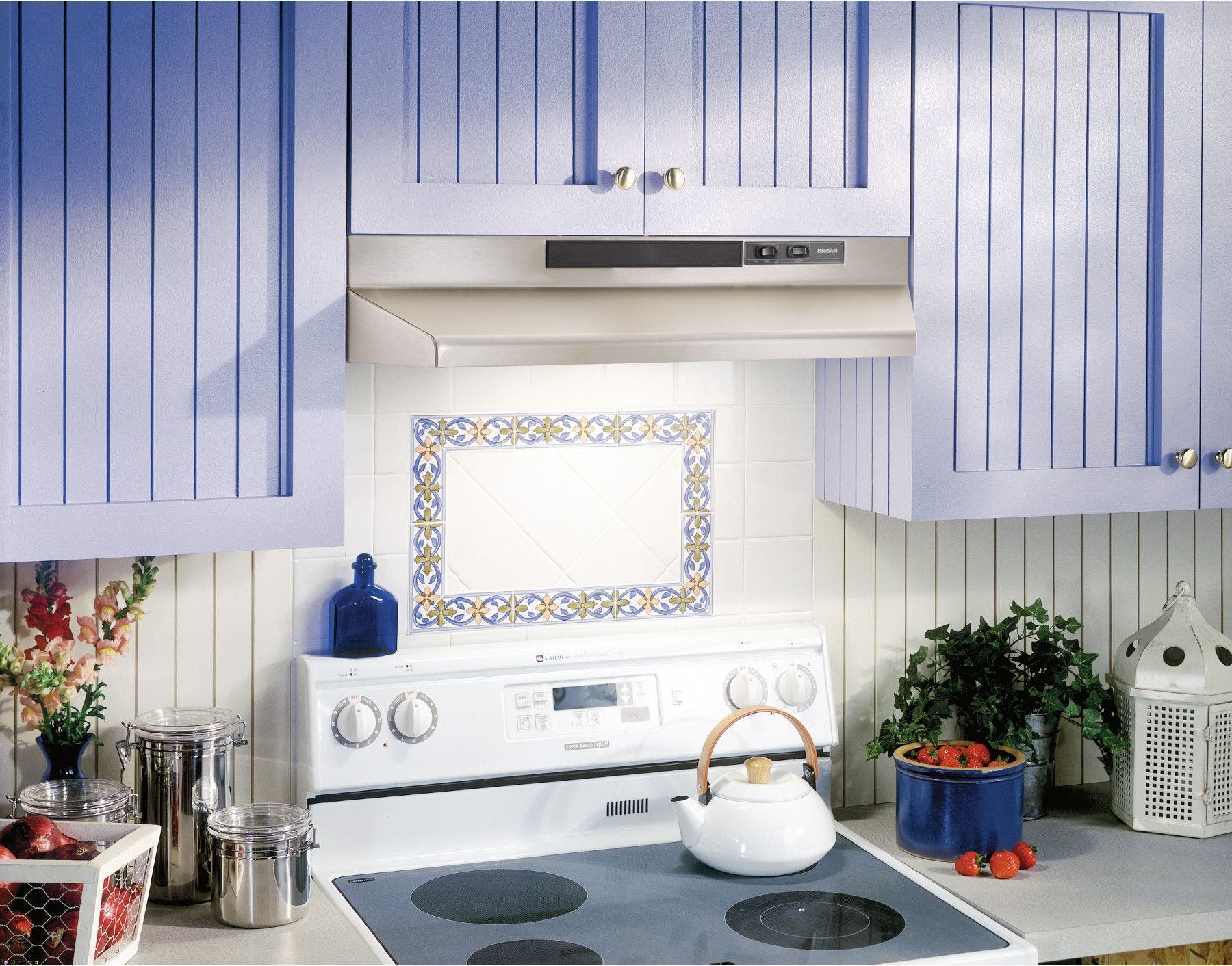

Broan F403004Under Cabinet Range Hood with Incandescent Lighting: Stainless Steel, 30 Inch
Broan F403004
Features
Features
• Provides installation flexibility with 4-way convertibility to fit virtually all applications

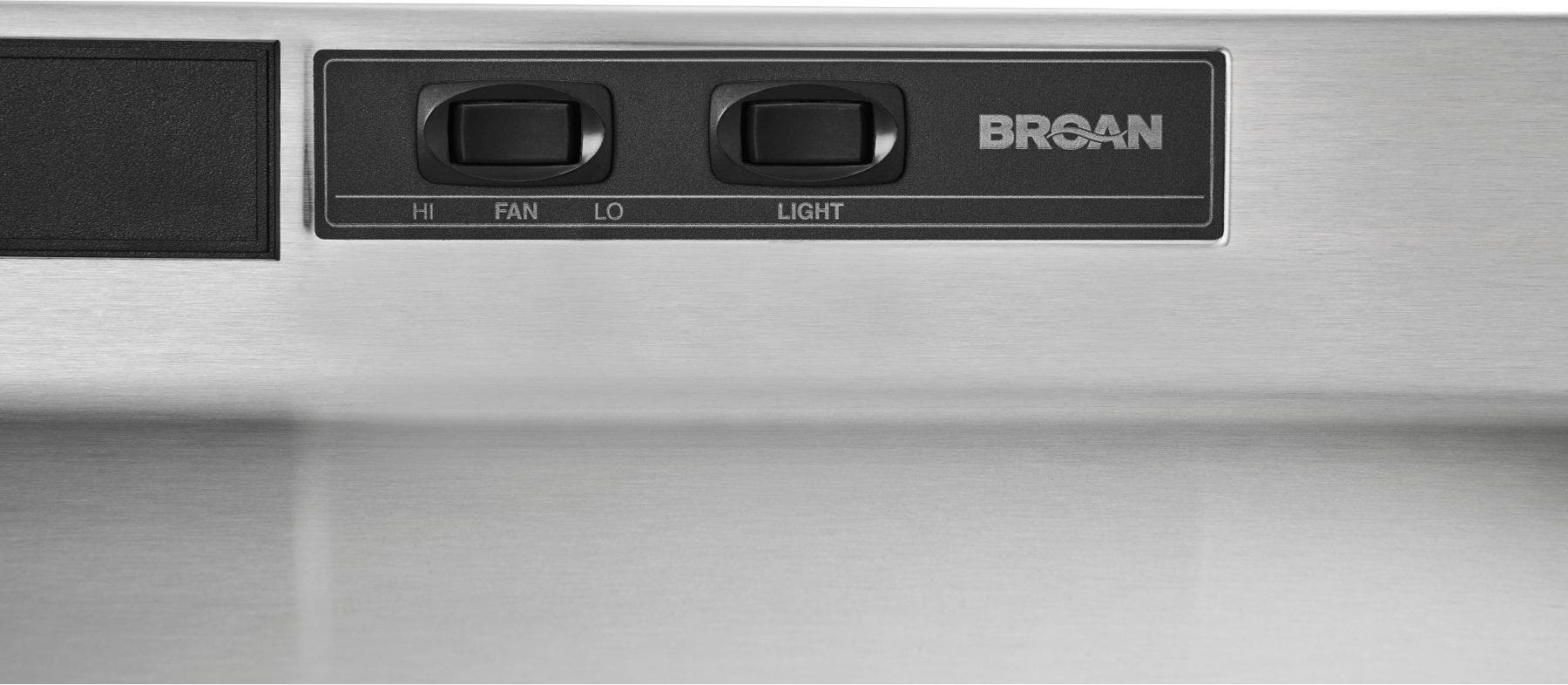

• Simple to use rocker switches let you adjust the fan speed and the light setting separately
• Two fan speeds help you tackle a variety of venting jobs
• 160 - 190 CFM blower helps quickly remove smoke and other cooking odors from the air
• Vertical and horizontal exhaust option lets you connect the ductwork to the top or rear of the range hood

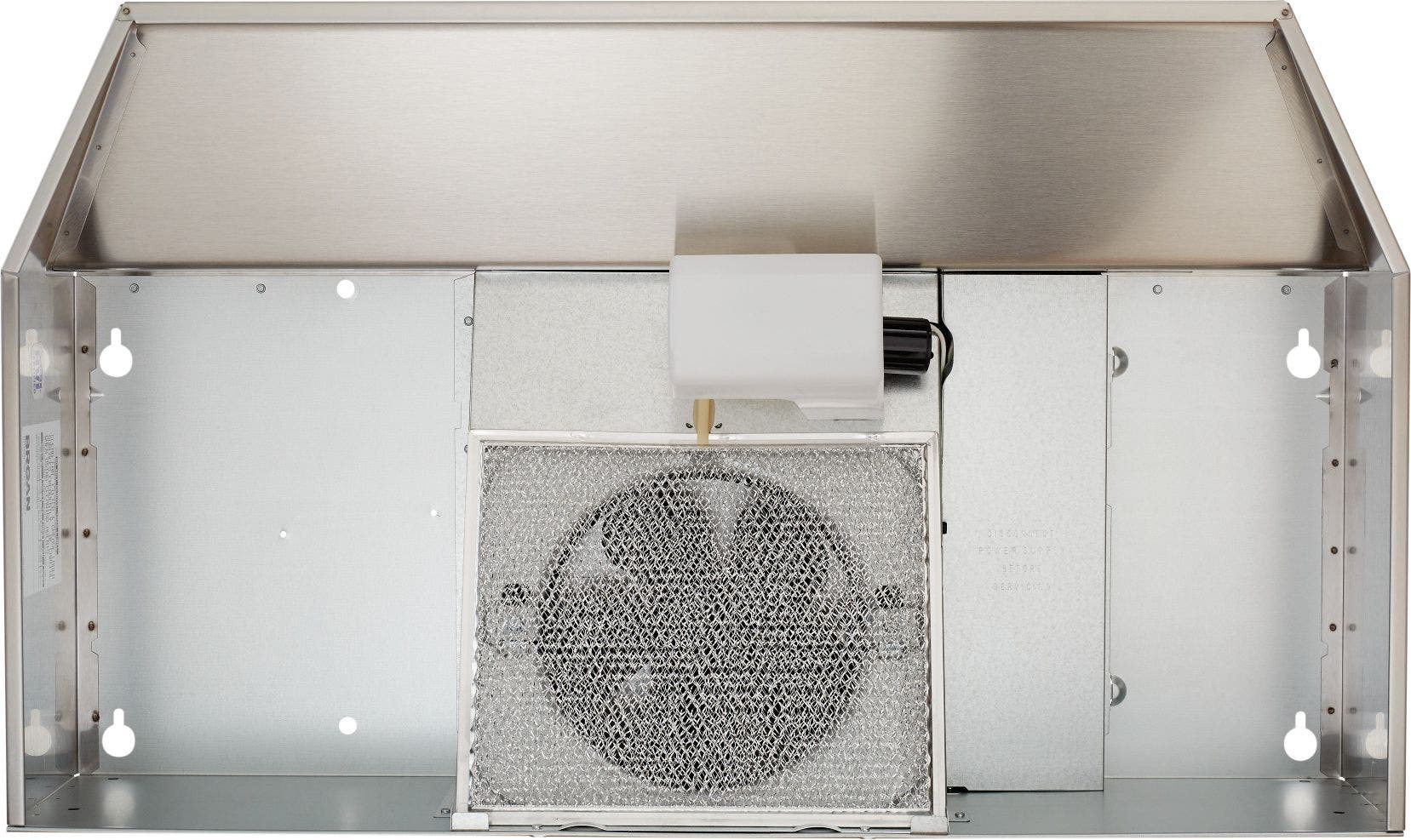

• Removable, reusable, dishwasher-safe aluminum mesh filter for easy cleaning and maintenance; supports ductless filtration via non-ducted filter (purchase separately)
• Uses up to a 75-Watt in incandescent light to brightly illuminate the cooking area (bulb sold separately)
• Includes a 3-1/4 in. x 10 in. damper/adapter and a 7 in. round adapter for easy installation (7 in. damper sold separately)
• Enclosed light and fan/filter assemblies, mitered corners and hemmed edges for good looks and easy cleaning
• One year limited warranty
• UL listed and HVI 2100 certified
• Max. Blower CFM: 230
• Two speed fan control
• Polymeric blade and light lens (accepts up to 75 W bulb)
• Washable aluminum filter
• Converts to non-ducted by removing cover plate from front of hood and installing the non-ducted filter (purchase separately)
• Mitered sides and hemmed bottom for safety and good looks
• 3¼" x 10" damper/duct connector included
• 7" round duct adapter plate included. 7" round damper purchase separately
Typical Specification
• Unit shall be convertible between ducted using a washable aluminum filter (included) and non-ducted (purchase nonducted filter separately)
• Motor to be permanently lubricated. RPM not to exceed 2850
• Unit shall have a two-speed fan switch with separate light switch
• Sides shall be mitered and bottom edge hemmed - with no sharp edges
• Air delivery shall be no less than 160 CFM and sound levels no greater than 6.5 Sones (3¼" x 10" horizontal and vertical discharge) or 190 CFM at 6.5 Sones (7" round discharge)
• All air and sound ratings shall be certified by HVI
